Structural Analysis

Linear-static FEA on the part you are designing

Compute how a part deforms and where it is stressed under load, directly on its solid bodies — no separate analysis document to keep in step. Cases, meshes, materials, restraints and loads live in the part; results go to a regenerable sidecar that is flagged out of date when the model changes.

Works on
Parts
Toolboxes
4
The Structural Analysis workbench on a bolt-down steel padeye pulled at its eye with 100 kN: the part coloured by von Mises stress on its exaggerated deformed shape, with the results panel showing 196.9 MPa peak stress, a safety factor of 1.80 and 0.18 mm maximum displacement.
10 t padeyeVon Mises stress on a 10 t padeye

Why it matters

What stands out

Honest about its scope

Linear static analysis: small deflections, small strains, elastic material. The documentation says plainly that plasticity, contact, buckling and vibration are not covered.

Elements that bend correctly

Parabolic 10-node tetrahedra by default, with quality presets from Draft to Very fine; several meshes per case make a convergence check ordinary work.

Direct or iterative, CPU or GPU

Choose the solve method and the hardware independently; the iterative solver can run on a double-precision-capable GPU and falls back to the CPU with the same numbers.

Results with an error estimate

Von Mises, displacement, principal stress and an estimated mesh error, with max values, safety factor, DOF count and solve time.

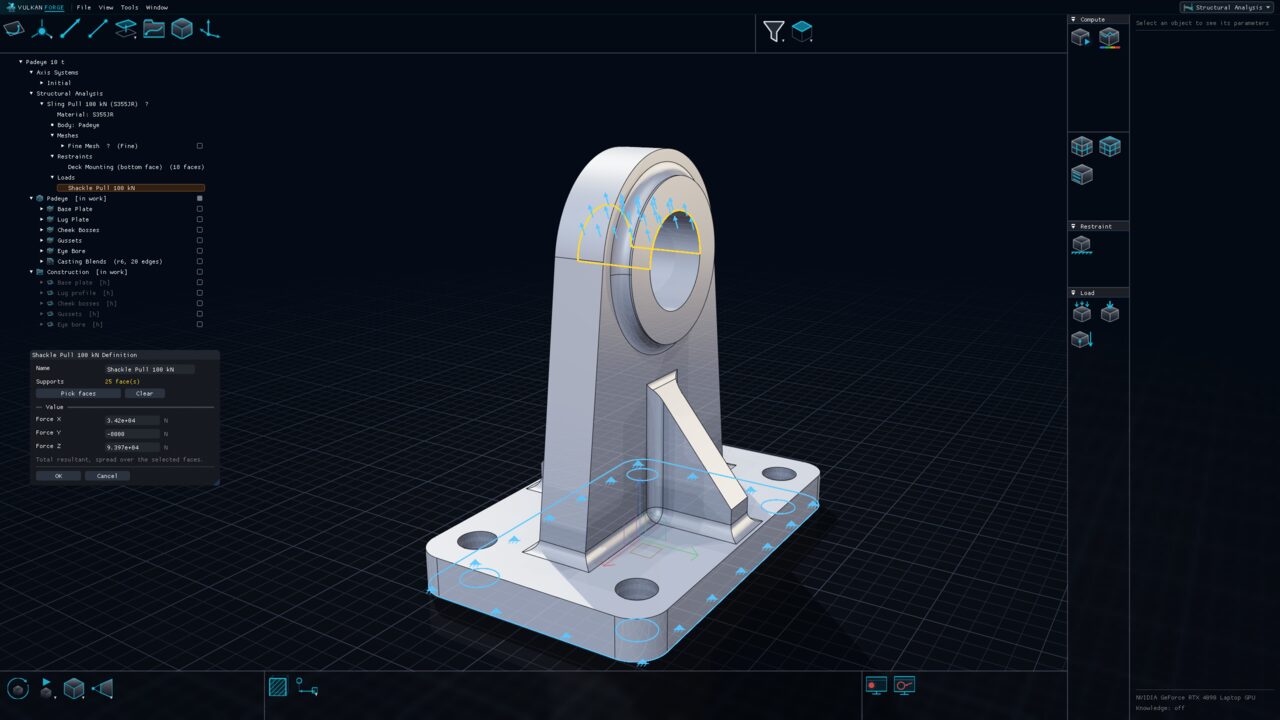

The steel padeye in the Structural Analysis workbench before solving: clamp symbols around the bolted foot, load arrows fanning out of the upper half of the eye bore, and the load dialog with its force components below the specification tree.
10 t padeyeRestraints and a 100 kN load, ready to solve

Operations

Everything in Structural Analysis

The complete inventory, toolbox by toolbox, with the icons exactly as they appear in the application.

Model3

  • Analysis CaseOne loading scenario; cases nest in groups
  • MeshTetrahedral mesh with quality preset and parabolic or linear elements
  • MaterialBuilt-in catalogue plus your own editable material catalogues

Restraint1

  • ClampBlock X/Y/Z on picked faces; a subset is an advanced restraint

Load3

  • PressureMPa on picked faces
  • Distributed ForceResultant force in N spread over faces, mesh-independent
  • AccelerationBody load, with a set-to-gravity shortcut

Compute3

  • ComputeMesh and solve, then open the results
  • Show MeshMesh wireframe with node and element counts
  • ResultsField display, deformed shape and colour scale
